Quantum regions
For quantum solutions, you have to define quantum regions and clusters
on which certain quantum models are applied.
The syntax of the quantum regions and clusters is the same as for current and
material regions.
For more info on specifiers see
$regions .
!---------------------------------------------------!
$quantum-regions
optional !
region-number
integer
required !
base-geometry
character
required !
region-priority
integer
required !
!
x-coordinates
double_array
optional !
y-coordinates
double_array
optional !
z-coordinates
double_array
optional !
!
base-coordinates
double_array
optional !
top-coordinates
double_array
optional !
!
corner-coordinates
double_array
optional !
!
semi-ellipse-base
double_array
optional !
semi-ellipse-top
double_array
optional !
$end_quantum-regions
optional !
!---------------------------------------------------!
Syntax
region-number = 1
!
an integer number to refer to geometry element
= 2
= ...
base-geometry = line
!
type of geometry element
!
1D: line
! 2D: rectangle
| triangle |
trapezoid | polygon
|
semiellipse
! 3D: cuboid |
obelisk
| cone |
truncated-cone |
semiellipsoid |
hexagonal-obelisk |
triangular-prism

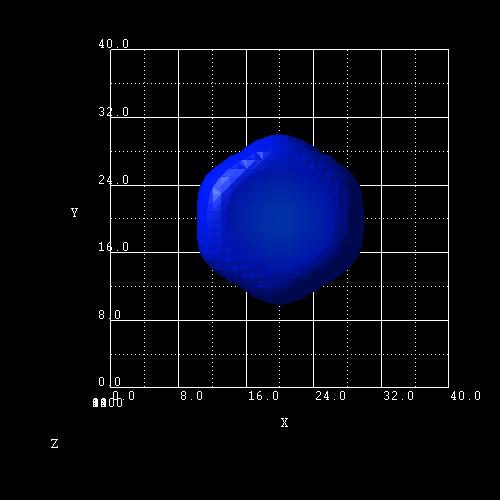

The figure shows the calculated wave function that was confined by a 3D
hexagonal-obelisk shaped quantum region with Dirichlet boundary
conditions.
region-priority = 1
!
a positive integer to set overwriting priority
x-coordinates = xmin xmax
! xmin , xmax
of base-geometry = cuboid
y-coordinates =
ymin ymax
! ymin , ymax
of base-geometry = cuboid
z-coordinates =
zmin zmax
! zmin , zmax
of base-geometry
= cuboid
base-coordinates =
xmin xmax
ymin ymax
zmin zmax
top-coordinates = xmin
xmax ymin
ymax zmin
zmax
! for
truncated-cone
=
x y z for semiellipsoid and cone
corner-coordinates = x1 y1 x2 y2 x3 y3
!
(x1,y1)(x2,y2)(x3,y3) triangle corner coordinates, interpreted via
orientation
semi-ellipse-base = imin imax
jmin jmax !
base line ellipse: two pairs of xmin,xmax
ymin,ymax zmin,zmax
- one pair equal numbers
semi-ellipse-top = i j
!
top coordinate pair: e.g. for coordinate
orientation (101) -> (x,z)
|
