1D Tutorial

k.p dispersion of an unstrained GaN QW embedded between strained AlGaN layers

Author: Stefan Birner

If you want to obtain the input files that are used within this tutorial, please check if you can find them in the installation directory.
If you cannot find them, please submit a Support Ticket.
-> 1DGaN_AlGaN_QW_k_zero.in                   (along [0001]  direction)
-> 1DGaN_AlGaN_QW_k_parallel.in               (along [0001]  direction)
-> 1DGaN_AlGaN_QW_k_zero_10m10.in             (along [10-10] direction)
-> 1DGaN_AlGaN_QW_k_parallel_10m10.in         (along [10-10] direction)
-> 1DGaN_AlGaN_QW_k_parallel_10m10_whole.in   (along [10-10] direction) (whole 2D k_|| space)


k.p dispersion of an unstrained GaN QW embedded between strained AlGaN layers

This tutorial is based on:

[Park1]
Crystal Orientation Effects on Electronic Properties of Wurtzite GaN/AlGaN Quantum Wells with Spontaneous and Piezoelectric Polarization
S.-H. Park
Jpn. J. Appl. Phys. 39, 3478 (2000)


The material parameters are taken from
[Park2]
Comparison of zinc-blende and wurtzite GaN semiconductors with spontaneous polarization and piezoelectric field effects
S.-H. Park, S.L. Chuang
J. Appl. Phys. 87, 353 (2000)
except those listed in Table 1 of [Park1].

We note that meanwhile a revised set of material parameters is available. However, in order to reproduce the results of [Park1] we used the same parameters as in the above cited papers.

[0001] growth direction

Calculation of the electron and hole energies and wave functions for k_|| = 0.

-> 1DGaN_AlGaN_QW_k_zero.in

The structure consists of a 3 nm unstrained GaN quantum well, embedded between 8.4 nm strained Al_0.2Ga_0.8N barriers. The AlGaN layers are strained with respect to the GaN substrate. The GaN quantum well is assumed to be unstrained.

The structure is modeled as a superlattice (or multi quantum well, MQW), i.e. we apply periodic boundary conditions to the Poisson equation.

The growth direction is along the hexagonal axis, i.e. along [0001].

Conduction and valence band profile

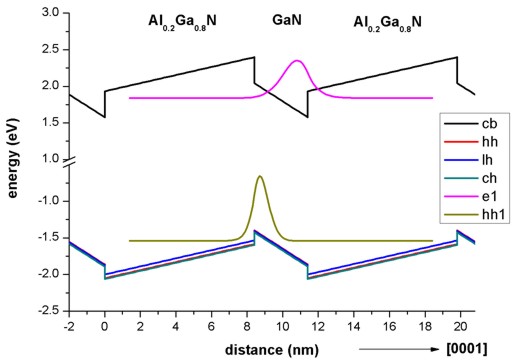

The following figure shows the conduction and valence (heavy hole, light hole and crystal-field split-off hole) band edges of our structure, including the effects of strain, piezo- and pyroelectricity. The ground state electron and the ground state heavy hole wave functions (psi²) are shown. Due to the built-in piezo- and pyroelectric fields, the electron wave function are shifted to the right and the hole wave function to the left (Quantum Confined Stark Effect, QCSE).

Strain

The strain inside the GaN quantum well layer is zero.
The tensile strain in the Al_0.2Ga_0.8N barriers has been calculated to be e_xx = e_yy = (a_substrate - a) / a = 0.486 ([Park1]: 0.484).

The output of the strain tensor can be found in this file:
=> strain1/strain_cr1D.dat

Piezoelectric polarization

The piezoelectric polarization for the [0001] growth direction is zero inside the GaN QW (because the strain is zero in the QW).
In the Al_0.2Ga_0.8N barriers, the piezoelectric polarization has been calculated to be 0.0081 C/m² in agreement with Fig. 1(a) of [Park1] for angle theta = 0.
The resulting piezoelectric polarization
- at the Al_0.2Ga_0.8N/GaN interface is -0.0081 C/m²
- at the GaN/Al_0.2Ga_0.8N interface is  0.0081 C/m².

The output of the piezoelectric interface charges can be found in this file:
=> densities/interface_densitiesD.txt

Pyroelectric polarization

The pyroelectric polarization for the [0001] growth direction is -0.029 inside the GaN QW.
In the Al_0.2Ga_0.8N barriers, the pyroelectric polarization has been calculated to be -0.0394 C/m².
The resulting pyroelectric polarization
- at the Al_0.2Ga_0.8N/GaN interface is -0.0104 C/m²
- at the GaN/Al_0.2Ga_0.8N interface is  0.0104 C/m².
These results are in excellent agreement with Fig. 1(a) of [Park1] for angle theta = 0.

The output of the pyroelectric interface charges can be found in this file:
=> densities/interface_densitiesD.txt

Poisson equation

Solving the Poisson equation with periodic boundary conditions (to mimick the superlattice) leads to the following electric fields:
Inside the GaN QW the electric field has been calculated to be -1.551 MV/cm. [Park1] reports an electric field of -1.55 MV/cm inside the QW.
The electric field in the AlGaN barrier has been found to be 0.554 MV/cm.

The output of the electrostatic potential (units [V]) and the electric field (units [kV/cm]) can be found in these files:
=> band_structure/potential1D.dat
=> band_structure/electric_field1D.dat

Schrödinger equation

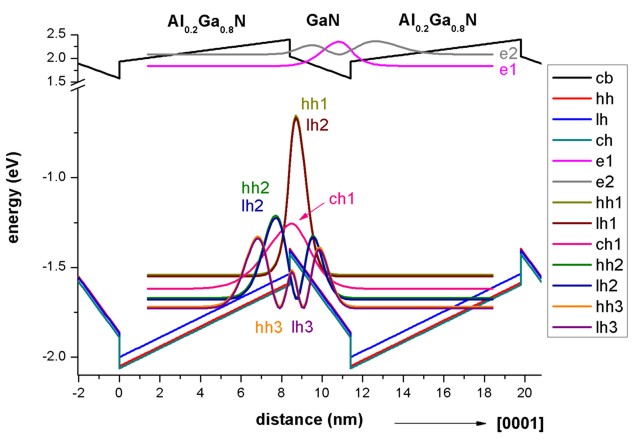

The following figure shows the electron and hole wave functions (psi²) of the GaN/AlGaN structure for k_|| = 0. The heavy and light hole wave functions are very similar in shape.

In agreement with the paper [Park1], we calculated the electron levels within the single-band effective mass approximation and the hole levels within the 6-band k.p approximation.

k_|| dispersion: Calculation of the electron and hole energies and wave functions for k_|| /= 0.

-> 1DGaN_AlGaN_QW_k_parallel.in

The grid has a spacing of 0.1 nm leading to a sparse matrix of dimension 1050 which has to be solved for each k_|| point for the eigenvalues (and wave functions).

We chose as input:
  num-kp-parallel = 1849   ! This corresponds to 1849 k_|| points in the 2D (k_x,k_y) plane, i.e. (2 * 21 + 1) * (2 * 21 + 1) = 1849.

Due to symmetry arguments, we solved the the Schrödinger equation only for the k_|| points along the line (k_x > 0, k_y = 0), i.e. we had to solve the Schrödinger equation 22 times (i.e. to calculate the eigenvalues of a 1050 x 1050 matrix 22 times).

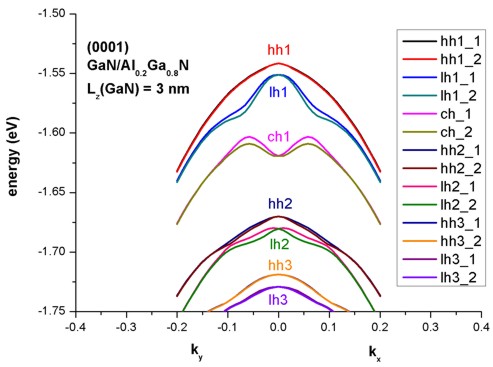

The energy dispersion E(k_||) = E(k_x,k_y) is contained in this file: Schroedinger_kp\kpar1D_disp_00_10_hl_6x6kp_ev_min001_ev_max014.dat

Because our quantum well is not symmetric (due to the piezo- and pyroelectric fields!), the eigenvalues for spin up and spin down are not degenerate any more. They are only degenerate at k_|| = 0.
This lifting of the so-called Kramers degeneracy in the in-plane dispersion relations is because of the field-induced assymetry. In Fig. 3 (a) of [Park1] only the spin-up eigenstates are plotted because the splitting of the Kramers degeneracy was assumed to be very small.

[10-10] growth direction (m-plane)

-> 1DGaN_AlGaN_QW_k_zero_10m10.in       (along [10-10] direction)

If one grows the quantum well along the [10-10] growth direction, then the pyroelectric and piezoelectric fields along the [10-10] direction are zero.
In this case, the quantum well (i.e. the conduction and valence band profile) is symmetric.

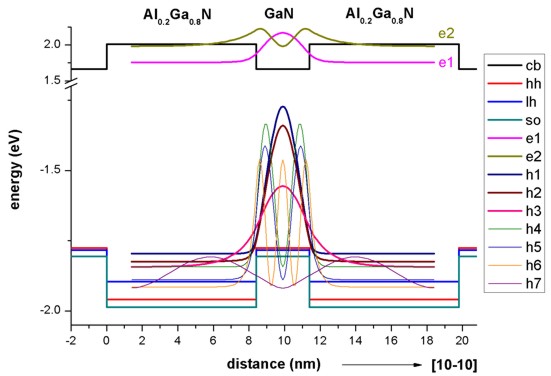

The following figure shows the electron and hole wave functions (psi²) of the (10-10)-oriented GaN/AlGaN QW for k_|| = 0.
Obviously, the interband transition matrix elements (i.e. the probability for electron-hole transitions) are much larger than for the [0001] growth direction.

In agreement with the paper [Park1], we calculated the electron levels within the single-band effective mass approximation and the hole levels within the 6-band k.p approximation.

k_|| dispersion: Calculation of the electron and hole energies and wave functions for k_|| /= 0.

-> 1DGaN_AlGaN_QW_k_parallel_10m10.in   (along [10-10] direction)

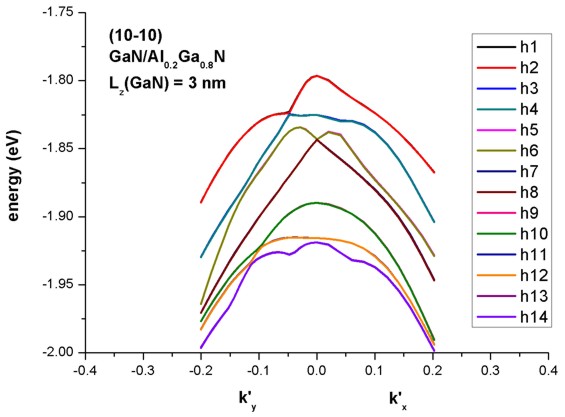

Due to the symmetry of the quantum well, we expect degenerate eigenvalues for the in-plane dispersion relation (Kramers degeneracy).
Our results compare well with Fig. 3(c) of [Park1].
