2D Tutorial

Landau levels of a bulk GaAs sample in a magnetic field

Author: Stefan Birner

If you want to obtain the input files that are used within this tutorial, please check if you can find them in the installation directory.
If you cannot find them, please submit a Support Ticket.
 -> 2DBulkGaAs_LandauLevels_nn3.in / *_nnp.in - input file for the nextnano³ and nextnano++ software


Landau levels of a bulk GaAs sample in a magnetic field

In this tutorial we study the electron energy levels of a bulk GaAs sample that is subject to a magnetic field.

• The GaAs sample extends in the x and y directions (i.e. this is a two-dimensional simulation) and has the size of 300 nm x 300 nm.
  At the domain boundaries we employ Dirichlet boundary conditions to the Schrödinger equation, i.e. infinite barriers.

• The magnetic field is oriented along the z direction, i.e. it it perpendicular to the simulation plane which is oriented in the (x,y) plane).
  We calculate the eigenstates for different magnetic field strengths (1 T, 2 T, 3 T), i.e. we make use of the magnetic field sweep.

    $magnetic-field

   magnetic-field-on                    = yes
   magnetic-field-strength              = 0.0     ! 0 Tesla = 0 Vs/m²
   magnetic-field-direction             = 0 0 1   ! [001] direction

   magnetic-field-sweep-active          = yes     !
   magnetic-field-sweep-step-size       = 1.0     ! 1 Tesla = 1 Vs/m²
   magnetic-field-sweep-number-of-steps = 3       ! 3 magnetic field sweep steps

   output-magnetic-vector-potential     = yes     ! output of A(x,y,z)
  $end_magnetic-field

• A useful quantitiy is the magnetic length (or Landau magnetic length) which is defined as:
      l_B = [h_bar / (m_e* w_c)]^1/2 = [h_bar / (|e| B)]^1/2
  It is independent of the mass of the particle and depends only on the magnetic field strength:
  - 1 T: 25.6556 nm
  - 2 T: 18.1413 nm
  - 3 T: 14.8123 nm

• The electron effective mass in GaAs is m_e* = 0.067 m₀. Another useful quantity is the cyclotron frequency:
      w_c = |e| B / m_e*
  Thus for the electrons in GaAs, it holds for the different magnetic field strengths:
  - 1 T: h_barw_c = 1.7279 meV
  - 2 T: h_barw_c = 3.4558 meV
  - 3 T: h_barw_c = 5.1836 meV

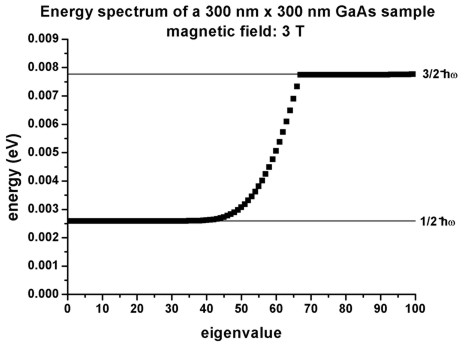

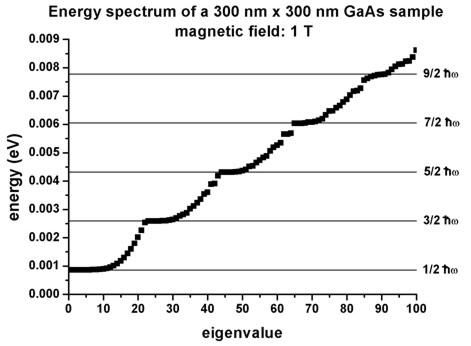

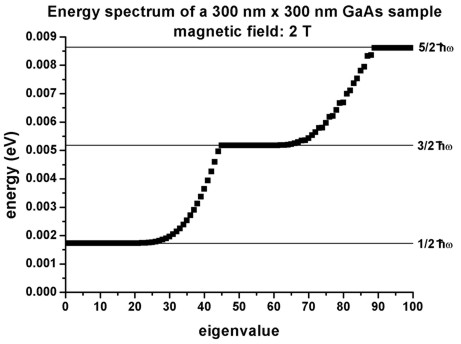

• The energy spectra for different magnetic fields (1 T, 2 T, 3 T) look as follows:


• The Landau levels are given by E_n = (n - 1/2) h_barw_c where n = 1,2,3,...

• The number of states for each Landau level can be calculated as follows (see P.Y. Yu, M. Cardona, Fundamentals of Semiconductors, p. 536, 3^rd ed.):
      N = L_xL_y |e| B / h = 1/(2pi)  L_xL_y / l_B²        (ignoring spin)
  where L_x and L_y are the lengths in the x and y directions (300 nm in this example) and l_B is the magnetic length.

  N(1 T) = 21.76 ==> ~22 states per Landau level (in the figure above: 22 as it should be)
  N(2 T) = 43.52 ==> ~44 states per Landau level (in the figure above: 44 as it should be)
  N(3 T) = 65.29 ==> ~66 states per Landau level (in the figure above: 66 as it should be)

  Note that N is independent of n.
• For the calculations, we used the symmetric gauge A = - 1/2 r x B = 1/2 B x r
  leading to the following energies (see J.H. Davies, The Physics of Low-Dimensional Semiconductors, p. 222):
      E_n,l = (n + 1/2 l + 1/2 |l| - 1/2) h_barw_c
  One can see that all states having a negative value of 'l' are degenerate with the states with l=0, i.e. the allowed energies are independent of l if l < 0 (for the same n).
  The energies increase if l increases (for l > 0 and for the same n).

• The motion in the z direction is not influenced by the magnetic field and is thus that of a free particle with energies and wave functions given by:
     E_z = h_bar² k_z² / (2 m*)
     psi(z) = exp (+- i k_z z)
  For that reason, we did not include the z direction into our simulation domain, and thus only simulate in the (x,y) plane (two-dimensional simulation).
