nextnano3 - Tutorial
next generation 3D nano device simulator
3D Tutorial
Energy levels in a pyramidal shaped InAs/GaAs quantum dot including strain
and piezoelectric fields
Author:
Stefan Birner
-> 3DInAsGaAsQDPyramid_PryorPRB1998_10nm_nn3.in / *nnp.in -
input file for the nextnano3 and nextnano++
software
These input files are included in the latest version.
Energy levels in a pyramidal shaped InAs/GaAs quantum dot including strain
and piezoelectric fields
-> 3DInAsGaAsQDPyramid_PryorPRB1998_10nm.in -
QD with 10 nm base length
This tutorial is based on the following paper:
Eight-band calculations of strained InAs/GaAs quantum dots compared with
one-, four-, and six-band approximations
Craig Pyror
Physical Review B 57 (12), 7190 (1998)
We use identical material parameters with respect to this paper in order to
make it possible to reproduce Pryor's results.
We note that meanwhile more realistic material parameters are available and
that for the simulation of realistic quantum dots the inclusion of the wetting
layer and an appropriate nonlinear InGaAs alloy profile is recommended.
We make the following simplifications in order to be consistent with Pryor:
- The wetting layer is omitted for simplicity.
- The QD material is purely InAs.
- The barrier material is purely GaAs.
- The dielectric constant in the barrier material (GaAs) is the one for
InAs.
- Periodic boundary conditions are assumed in all three directions for the
strain equation.
- The QD shape is a pyramid with a square base (base length = 10 nm) and a
height of 5 nm.
The four side walls of the pyramid are oriented in the (011), (0-11), (101)
and (-101) planes, respectively.
The whole simulation area has the dimensions 44 nm x 44 nm x 40 nm.
Conduction and valence band profiles
The following figures shows the conduction and valence band edges (heavy hole,
light hole and split-off hole) for a 10 nm pyramidal shaped QD along two
different line scans.
The energies of the bands have been obtained by diagonalizing the 8-band k.p
Hamiltonian at k = 0 (including the Bir-Pikus strain Hamiltonian) for
each grid point, taking into account the local strain tensor and deformation
potentials.
Note that piezoelectric effects are not included yet in this band profile.

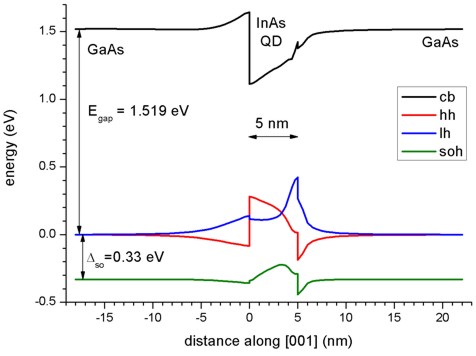

The left figure shows the band profile along the z axis through the
center of the QD (x = y = 0 nm).

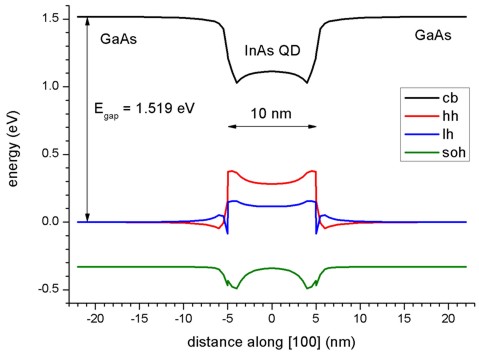

The right figure shows the band profile along the x axis through the base
of the QD (y = z = 0 nm).

The figures compare well with Pryor's Figs. 2(a) and 2(b). However, there are
some differences:
Due to valence band mixing of the states in the k.p Hamiltonian, we do
not have pure heavy and light hole eigenstates any more.
Thus there is some arbitrariness to assign the labels "heavy" and "light" to the
relevant eigenstates h1 and h2.
Obviously, when solving the full 6-band or 8-band k.p Hamiltonian, this
labelling becomes irrelevant because all three hole band edges enter the
Hamiltonian simultaneously (in contrast to a single-band effective mass approach
where only individual "heavy" hole or "light" hole band edges would be
considered).
Electron wave function of the ground state
(single-band effective-mass approximation)
... to be continued. Please use the nextnano++ software for Quantum Dots (3DInAsGaAsQDPyramid_PryorPRB1998_10nm_nnp.in).
It is much faster.
Preliminary:
10 nm quantum dot (Note: Pryor's Fig. 7 shows the energies
for a 14 nm quantum dot).
band gap: 1.519 eV
Electron energies
(i) effective mass (me = 0.023 m0) =>
0.7000983 eV (only one confined electron state)
(ii) effective mass (me = 0.04 m0)
=> eV
(iii) effective mass (me(r) = ... m0)
=> not implemented in nextnano³
(iv) 8-band k.p
=> eV
Hole energies
( ) effective mass (mhh = 0.41 m0) =>
hh1 = -0.585198481 eV
=> hh1 = -0.61776 eV
=> hh1 = -0.62275 eV
(i) 6-band k.p
=> 1.0081402 eV (?) (bad eigenvalues using 6-band k.p with
finite-differences)
(ii) 8-band k.p
=> eV
Transition energy electron - hole:
- (i) - ( ): exciton correction 2.9 meV (Pryor: 27 meV)
E_ex [eV] E_el - E_hl E_el0 - E_hl0
Delta_Ex REAL(inter_matV(1))
1.28238 1.27958
1.28530 0.00291947
0.428169
14 nm quantum dot (Pryor's Fig. 7).
Electron energies
(i) effective mass (me = 0.023 m0) =>
0.6458949 eV (only one confined
electron state) + (1.519 - 0.752916) eV = 1.412 eV (in substrate layer below QD)
(i) effective mass (me = 0.023 m0) =>
0.6458949 eV (only one confined
electron state) + (1.519 - 0.765522) eV = 1.399 eV (in substrate layer at
corner)
(i) effective mass (me = 0.04 m0)
=> 0.6248762 eV (only one confined electron
state) + (1.519 - 0.765522) eV = 1.378 eV (in substrate layer at corner)
14 nm, 6x6k.p, box, nonsym:
-0.56607270
-0.58734305
-0.59621434
-0.60757551
-0.62802221
-0.63650764
|
