Problems and Limitations


The Window of the graphical user interface gets (too) small

On a high resolution screen with a Windows app scaling greater than 100%, it seems the Window size of nextnanomat can be reset to 100% e.g. when starting a simulation. As a result, everything is quite small and unreadable.

To avoid this issue:

  1. Navigate to ‘nextnanomat.exe’ within Windows file explorer

  2. Right click and select application properties

  3. Go to ‘Compatibility’ tab

  4. Change/Override high DPI setting

  5. Select ‘System (Enhanced)’

../../../_images/FAQ_ChangeDPISettings.png

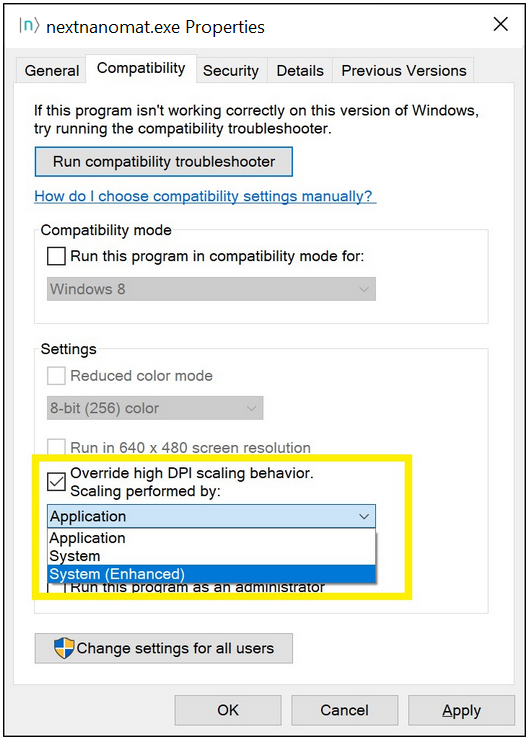

Figure 1.7.3 Screenshot of application properties dialog.


Last update: 25/10/2024
